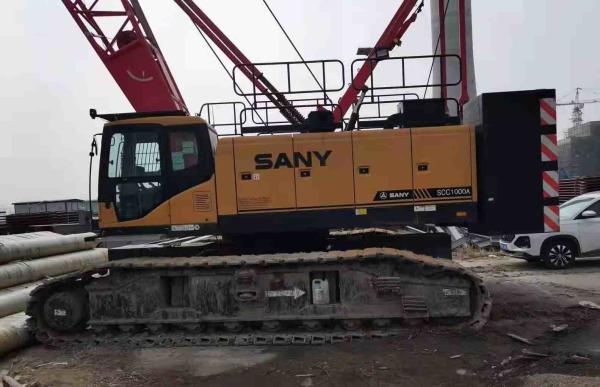

Sany SCC1000A Used Crawler Crane 100 Ton with 13m 64m Boom length

Product Categories

Hunan Sino-global Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Sany SCC1000A Used Crawler Crane 100 Ton with 13m 64m Boom length
Brand: Sany
Price: 1 USD

Brand Name : Sany

Model Number : SCC1000A

Place of Origin : China

MOQ : 1 unit

Payment Terms : T/T, L/C

Supply Ability : 15 untis per month

Delivery Time : 45-50 days after the down payment

Packaging Details : Containers, RORO ship, Cargo bulk ship

Boom length : 13~64m

Travel speed : 21km/h

Engine Model : 6HK1/7.79L

Rated power : 212/2000 kW/ rpm

Weight of machine with basic boom : 91t

Machine transport dimension (with crawlers and boom base) L×W×H : 13300×3490×3450mm

Machine transport dimension (without crawlers and boom base) L×W×H : 8450×3000×3050mm

Jib angle : 15,30°

Contact Now

Used Sany 100 Tons Crawler Crane-Model 2016

Product Discription
Sany SCC1000A		Unit	Parameter
Configuration	Max. rated lifting capacity	t	100
	Boom length	m	13~64
	Boom luffing angle	°	30~80
FJ	Max. rated lifting capacity	t	11
	Jib length	m	9~18
	Longest boom + longest jib	m	52+18
	Jib angle	°	15,30
Speed	Rope speed of main/aux. winch (1st layer)	m/min	121
	Rope speed of boom hoist winch (3rd layer)	m/min	59
	Swing speed	rpm	2.7
	Travel speed	km/h	21
Wire rope	Main hoist wire rope: diameter × length	φmm×m	26×240
	Aux. hoist wire rope: diameter × length	φmm×m	26×180
	Single line pull of main/aux. hoist wire rope	t	12
Engine	Model/Displacement		6HK1/7.79L
Engine	Rated power/Revolution speed	kW/ rpm	212/2000
Transport	Weight of machine with basic boom	t	91t
	Rear counterweight	t	31.2
	Carbody counterweight	t	5.5×2
	Transport weight of basic machine (with crawler frames and boom base)	t	46.5t
	Transport weight of basic machine (without crawler frame)		28.5 t
	Machine transport dimension (with crawlers and boom base) L×W×H	mm	13300×3490×3450mm
	Machine transport dimension (without crawlers and boom base) L×W×H	mm	8450×3000×3050mm
Other specifications	Average ground pressure (basic boom)	MPa	0.091
Other specifications	Gradeability	%	30
